Technical Specifications
Technca specificatonsancho
1. Injection
Moulding
Injection moulding machine capabilities
Minimum
Maximum
Feature specifications
Component weight
Feature size (hole)
0.5 grams
0.5 mm
130 grams
-
Injection System
Shot weight
Injection Pressure
Injection Volume (theroretical)
Injection type
Heating capacity
1 grams
100 bar
1 mm^3
Plunger
220 C
130 grams
180 bar
500 mm^3
Screw
380 C
Mould System
Clamping Force
Tie bar distance
Mould dimensions
Ejection type
3 ton
-
50 X 50 X 70mm
Auto
450 ton
380mm
1080 X 830 X 1080 mm
Auto
2.Tool
Room
Tool Room capabilities
Minimum
Maximum
Vertical milling center
Job height(Z)
Job width (Y)
Job depth(X)
hole feature
General tolerance
Surface finish
3 mm
500mm
300mm
1mm
0.01 mm
0.1 Ra
250mm
1000mm
500 mm
60mm
-
0.8 Ra
Surface grinding machine
bed height
bed width
General tolerance
Surface finish
500mm
200mm
0.001 mm
0.1 Ra
750mm
300mm
-
0.8Ra
Wire cutting
Job length
Job width
Job depth
hole feature
General tolerance
Lathe
Job dia
Job length
hole feature
General tolerance
10 mm
10 mm
3 mm
0.3mm
0.002 mm
3mm
20mm
2mm
0.1mm
500 mm
300 mm
200 mm
-
-
1000mm
1500mm
60mm
0.3mm
3.Rapid
Prototyping
Rapid prototyping machine capabilities
Minimum
Maximum
Fusion Deposition method
Bed dimensions
Hole feature size
Surface finish
layer thickness
Accuracy
Curing
Material compatibility
200 X 200 X 200mm
1 mm
layered
0.12 mm
0.1mm
Not required
350 X 350 X 400mm
-
-
0.28 mm
-
-
ABS, PLA, HIPS, PP, ASA, PC, nylon, carbon fiber, GFRP
Resin based printing
Print volume
Resolution
Material compatibility
Physical properties
Hole feature size
Surface finish
layer thickness
support system
Curing
160 X 70 X 180mm
28 microns
Thermoset polymer resin
High tensile strangth
0.1 mm
8K ultra high surface finish
0.01 mm
Minimal easy removable
UV based
220 X 130 X 240mm
-
-
low brittleness
-
-
0.03mm
-
-
Laser based printing
Bed dimensions
Material compatibility
Hole feature size
Surface finish
Layer thickness
Support system
Curing
Physical properties
250 X 180 X 150mm
SS, tool steel, copper, inconel
0.5 mm
smooth
50 microns
not required
sintering
very high tensile strength
300 X 220 X 180mm
-
-
-
150 microns
not required
-
-
4.Computer
Aided analysis
CAD/CAM/CAE capabilities
Capabilities
CAD Modelling Softwares
Analysis Softwares
Life cycle analysis
CNC routing
Functionality analysis

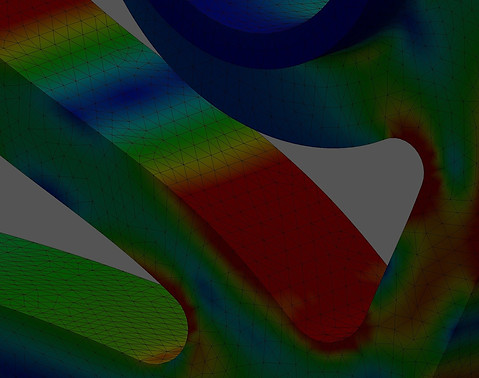

Finite element analysis
Details
covariant studies, Thermo-stress analysis, vibrational analysis
Solidworks, Fusion360, CREO
Solidworks, Autodesk, Matlab, ANSYS
Fatigue analysis, SN curve studies
All machine routing
Stress strain analysis, life cycle analysis, test case analysis
5. Vacuum
Forming
Vaccum forming machine capabilities
Minimum
Maximum
Feature specifications
Sheet width
Sheet thickness
Feature size (hole)
-
0.5 mm
1 mm
450mm
1 mm
-
mould system
forming depth
mould material
-
Mild steel, Tool steel
70mm
-
6. Material
compatibilities
Material compatilibity
Polypropylene
Acrylonitrile butadiene styrene
High Impact Polystyrene
Polycarbonate
Polyvinyl chloride
Nylon
Acrylic
Polyoxymethylene
Polyethylene
Thermoplastic Polyurethane
Confused what material to choose for your application?come let us work together on your product needs.
